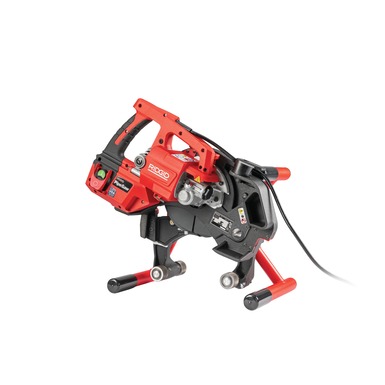

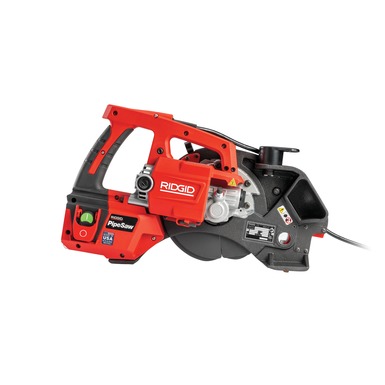

Cut pipe fast and efficiently with the RIDGID Pipe Saw. From the fab shop to the field, this tool delivers quality cuts on 1” – 12”. The tool secures onto the pipe in seconds making setup and operation a breeze. Fast and easy to use, the Pipe Saw lets you focus on the tasks that require more time and effort.
Ridgid Pipe Saw Features
- Interchangeable cutting head works with 2 clamp sizes (1” – 6” and 6” – 12”) to cut up to 12” pipe with a ½” wall thickness
- Powerful motor and optimal blades cut through carbon steel, stainless steel, plastic, cast iron and ductile iron with ease (10” Schedule 40 Pipe in just over a minute).
- Quick adjustment features and integrated alignment pad allow for mounting in seconds
- Pivot plunge design and speed monitoring with LED interface for optimal feed control
- Rigid 3-point roller system with one directional bearings secure to the pipe ensuring quality cuts
- Conveniently placed handlebars allow for easy, comfortable and controlled rotation
- Integrated handle and dedicated cord wraps
Specifications:
Nominal Cutting Capacity – Small Clamp: 1″ to 6″ (50mm to 150mm). Large Clamp: 6″ to 12″ (150mm to 300mm).
Maximum Wall Capacity – ½” (12mm), For Plastic Only 0.70” (18mm)
Pipe Material – Steel, Stainless Steel, Plastic, Cast Iron
Cut Quality – (Max. Offset) 0,050″ (1.27mm)
Weight – Small Clamp: 49 lbs. (22.2 kg) Large Clamp: 52 lbs. (23.6 kg)

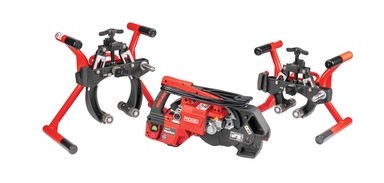

Available Configurations
| Catalog No. | Model No. | Description |
| 66388 | PCS500 & PC106 | Cutting head and 1″-6″ Small Clamp |
| 66393 | PCS500 & PC612 | Cutting head and 6″-12″ Large Clamp |
| 66398 | PCS500, PC106 & PC612 | Cutting head, Small Clamps, and Large Clamp |
| 66378 | PC106 | 1″-6″ Clamp only |
| 66383 | PC612 | 6″-12″ Clamp only |
| 67883 | PCS500 | Pipe Saw Cutting Head only |
Accessories
| Cat No. | Description |
| 66413 | Saw Blade for Steel and Stainless Steel (Cermet-Tipped) |
| 69053 | Saw Blade for Plastic Pipe (Carbide-Tipped) |
| 69988 | Saw Blade for Cast Iron (Diamond Abrasive) |
