A compact, reliable and quiet pump solution that pumps up to 8.4 hp.

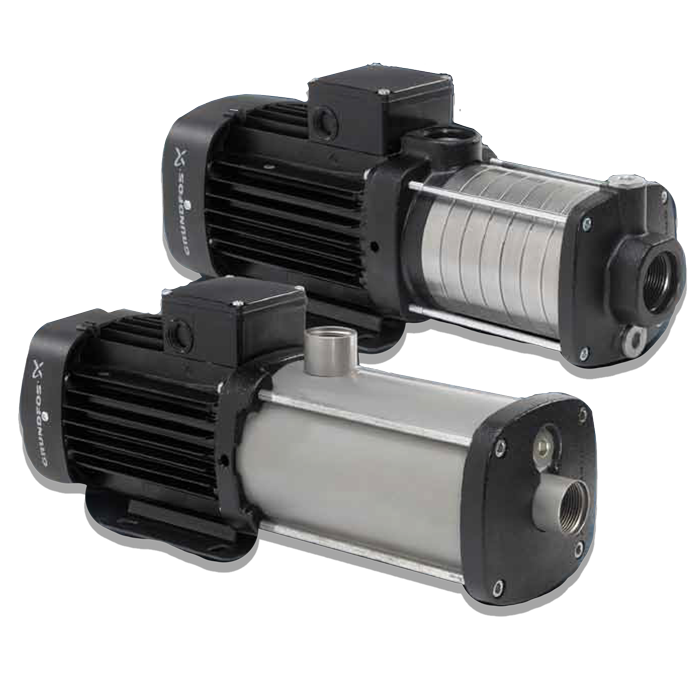

This horizontal multi-stage pump from Grundfos is a compact, reliable and quiet pump solution. It features a reduced footprint with high performance. Advanced processes and technologies in the design give the CM/CME pump a dimensional advantage.
The robust design ensures secure clamping of the pump impellers via a Nordlock© washer. And the pump is engineered to prevent the shaft seal sticking that is common with SIC-SIC seal faces through the implementation of a rotation stop on the stationary ring and a different surface finishing on the stationary and rotating rings.
Ideal for:
- Irrigation
- Washing & cleaning
- Temperature control
- Water treatment
- Chemical and Pharmaceutical industries
- Building services
The CME pump
The CME pump features an integrated variable frequency drive and PLC which provides a wide range of unique benefits:
- Wide range of control parameters
- Energy consumption reduced by up to half compared to fixed speed pumps
- The pump, motor and VFD is a compact system manufactured by Grundfos
- Reduced installation and wiring costs
- Easy installation
- The functionalities are designed for specific pump applications

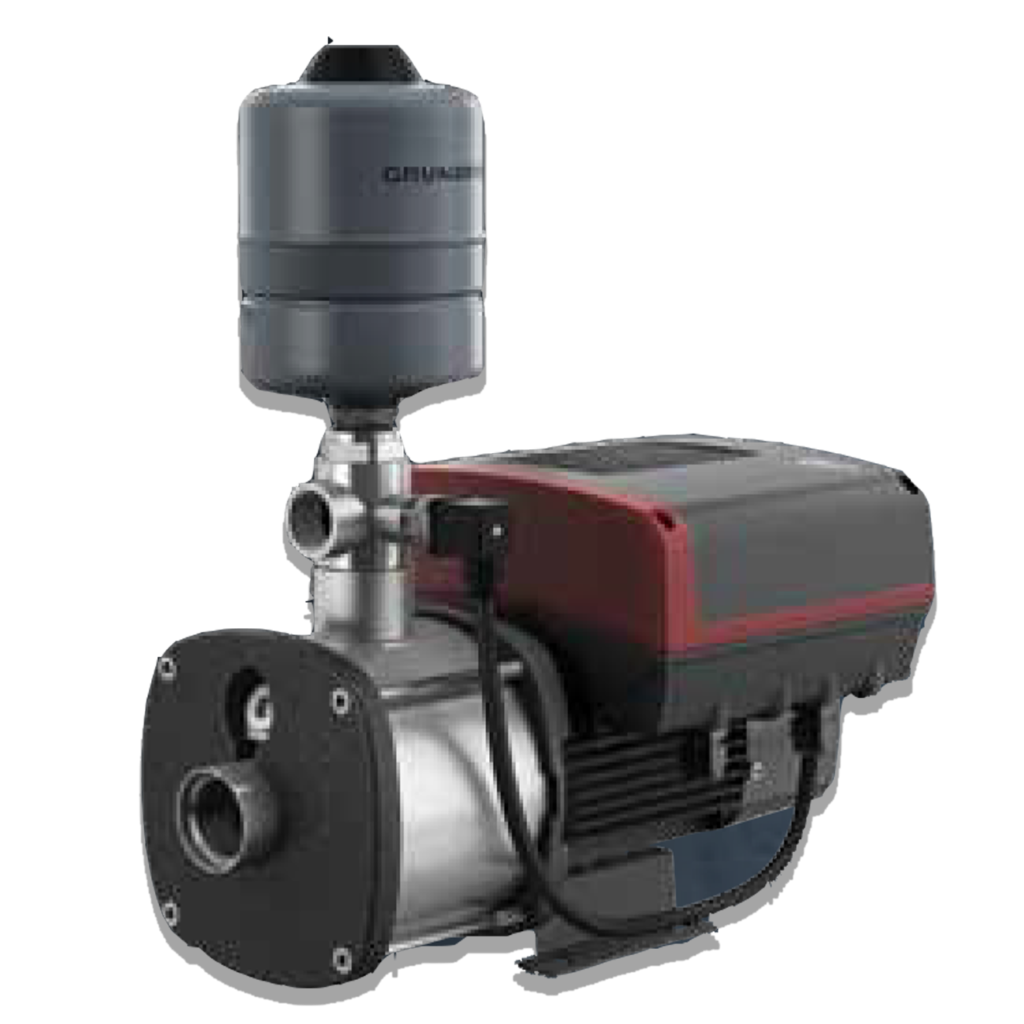

The CME Plus Pump
- Constant pressure control
- “Plug and pump” technology
- Includes pressure sensor, preprogrammed for operation
- The only set up required at commissioning is to adjust the setpoint pressure.
CME Pump Features:
- Filling plug – sealed by o-ring for easy maintenance
- Rotation Indicator – Quickly check if 3-phase electrical connection is correct. Indicator shows black if correct, white if incorrect.
- Nordlock© Washer – Ensures secure clamping of pump impellers and provides quick and easy assembly and disassembly
- Mechanical o-ring shaft seal – Offers superior dry running capabilities and reduced sticking problems
- Encapsulated sleeve o-ring – Design retains o-ring when temperature changes cause expansion and contraction
- Labrynth Seal – Provides protection for motor bearings and reduces maintenance.
- DIN, ANSI & JIS Flange Adapter
- Tri-Clamp and Victaulic Coupling Adapters
