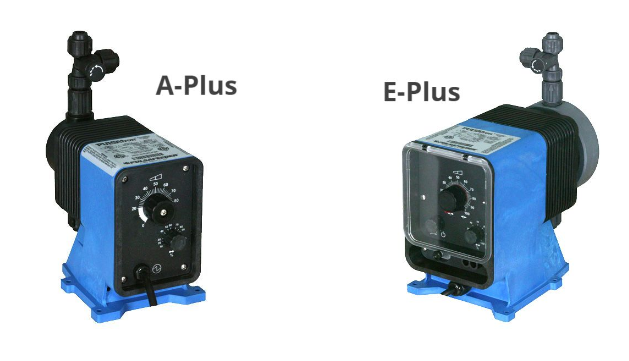

A-Plus
The Pulsatron Series A Plus offers manual function controls of stroke length and stroke rate standard, with the option to select external pace for automatic control. Other optional features include external stop function and 2000:1 turndown control. Ten distinct models are available.
- Manual control by onboard adjustable stroke rate and stroke length knobs
- Highly reliable timing circuit
- Solenoid protection by thermal overload with auto-reset
- Water resistant for outdoor and indoor applications
- Internally dampened to reduce noise
- Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics
- Few moving parts
- Wall mountable
- Safe and easy priming with durable leak-free bleed valve assembly (standard)
E-Plus
The Pulsation Series E Plus offers manual control over stroke length and stroke rate standard with the option to choose between 4-20mA and external pace inputs for automatic control. Twenty distinct models are available.
- Automatic control available with 4-20mADC direct or external pacing with stop function
- Manual control by on-line adjustable stroke rate and stroke length
- Auto-Off-manual switch
- Highly reliable timing circuit
- Panel mounted fuse
- Solenoid protection by thermal overload with auto-reset
- Water resistant for outdoor and indoor applications
- Indicator lights panel mounted
- Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics
- Safe and easy priming with durable leak-free bleed valve assembly (standard)

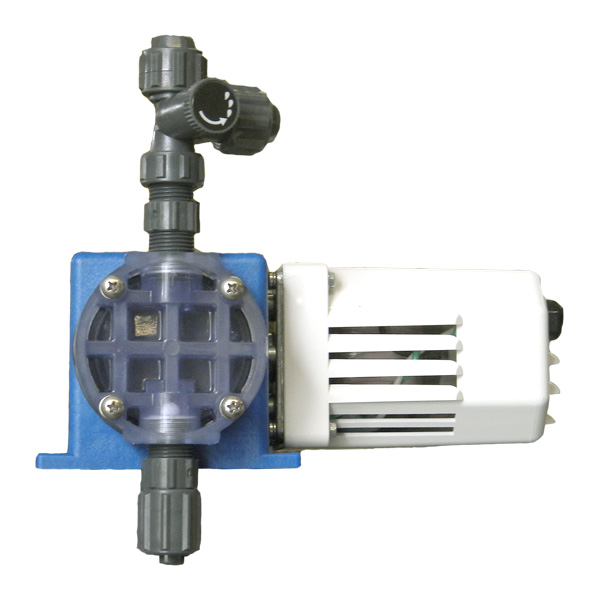

Pulsafeeder Chem-Tech 100-Series
Chem-Tech Series 100/150 pumps with motorized-diaphragm technology deliver dependable performance and extended longevity. Provides quiet, consistent metering over long periods of time in a compact form. Ideal for applications where economical, consistent performance is required. Capable of a wide range of flows, from less than 3 gpd (0.47 lph) up to 30 gpd (4.72 lph) and pressures up to 100 psi (7 bar). Offered in 115v and 230v options.
- Guided quad check valve system
- Bleed valve assembly standard
- Feed rate control
- Duplex Models – Both series are configurable for dosing two chemicals at different rates
