Water Treatment professionals are converting to the easy-to-use, most dependable, flexible and efficient system on the market. The patented ceramic disc valve is stronger than steel, has no wear parts to service or replace, and no maintenance or disassembly is required.
See why so many are making the switch!

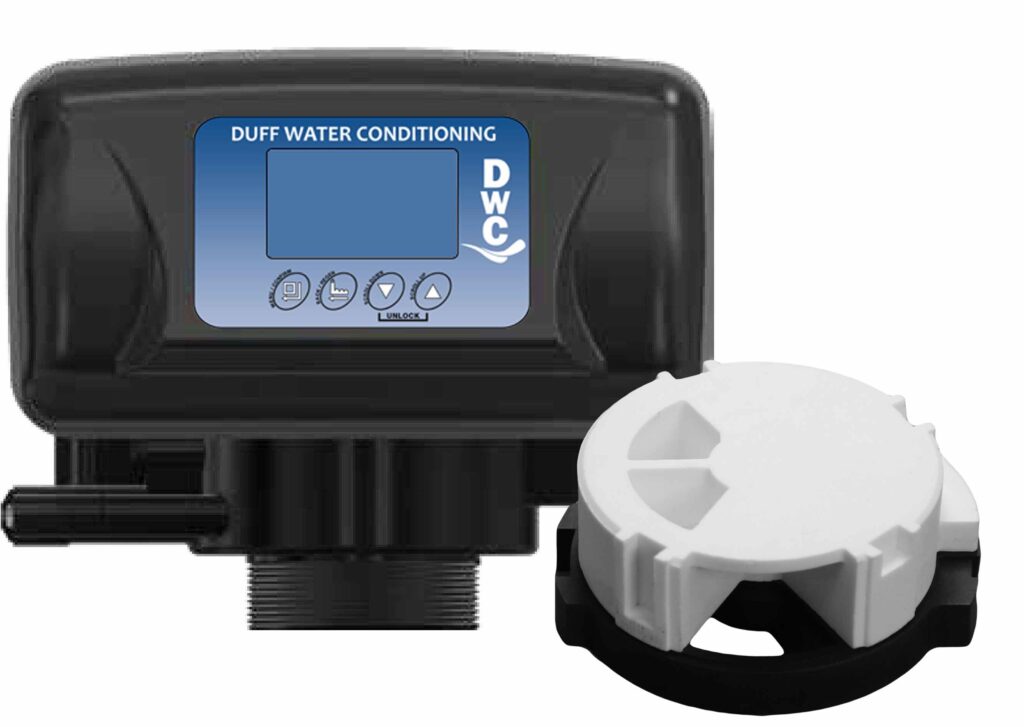

DWC Ceramic Disc Valve
The secret is the DWC Ceramic Disc—a patented disc that is corrosion and abrasion resistant for longer life and reduced maintenance.
Ceramic discs are 200x stronger than steel. Made to last a lifetime!
Programmable with dealer name and service alerts!
- The patented ceramic disc design features seven advanced programming options available through a bright, easy to read LCD display.
- Fully adjustable cycles to give users the ultimate performance and reliability.
- Complete flexibility when programming grains capacity / salt dosage. Not constrained to limited, pre-programmed choices.
- The most efficient and effective cleaning of media using up-flow regeneration.
- Interlock features, signal outputs, and twin-demand options are available to supply water 24/7.
- Advanced work modes are available with four adjustable cycle sequences to help dial-in the exact configuration needed.
- 32mm (1-1/4”) internals for high flow.
- 72-hour memory backup for program functioning.
- No external controller required to operate multiple control heads or external devices.
Ceramic discs are 200x stronger than steel. Made to last a lifetime!
- No wear parts that must be serviced or replaced!
- No maintenance, disassembly, or replacement parts to keep on hand.
- Valve can be used for either softener or backwashing filter.

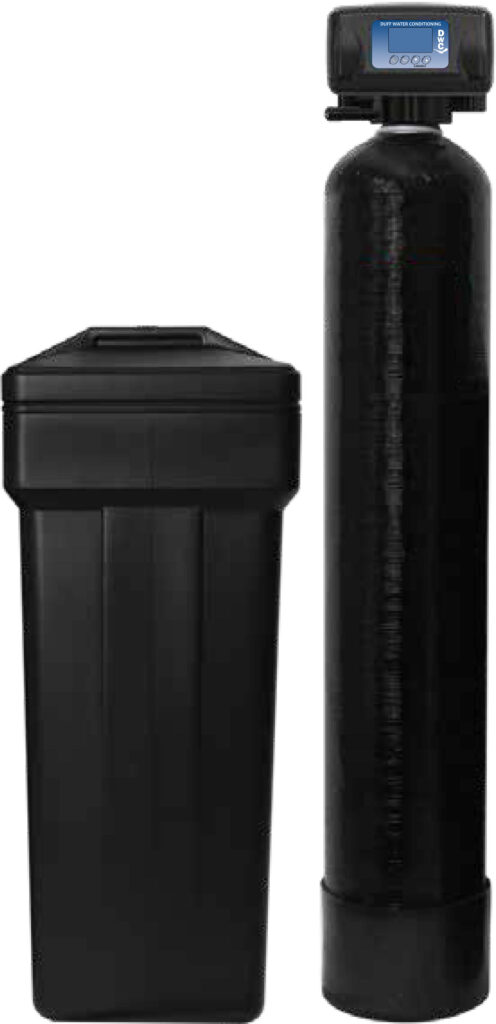

DWC Ceramic Disc Single Softener System
DWC Disc Valve Single Softening Systems are designed with high flow rates to handle most residential or light commercial applications.
Single System Specifications
| Model | Capacity Grains | Resin Cu. Ft. | Tank DxH (in.) | Brine Tank DxH (in.) | Backwash GPM |
|---|---|---|---|---|---|
| DWC32CD | 32,000 | 1 | 9″ x 48″ | 18″ x 33″ | 2 |
| DWC48CD | 48,000 | 1.5 | 10″ x 54″ | 18″ x 33″ | 2.9 |
| DWC64CD | 64,000 | 2 | 12″ x 52″ | 18″ x 40″ | 4.2 |
| DWC80CD | 80,000 | 2.5 | 13″ x 54″ | 18″ x 40″ | 4.8 |
| DWC96CD | 96,000 | 3 | 14″ x 65″ | 18″ x 40″ | 4.9 |

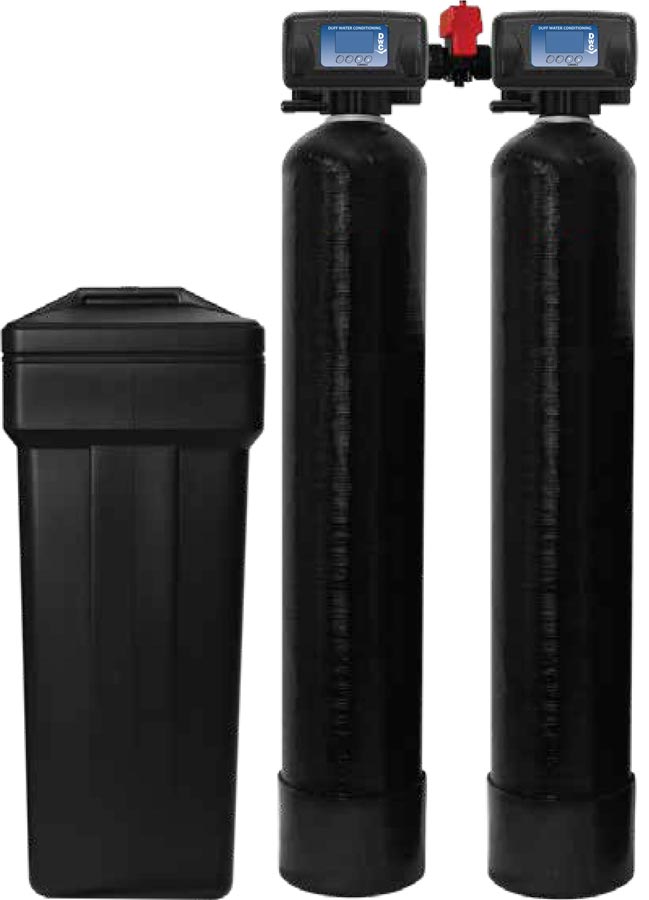

DWC Ceramic Disc Twin Softener System
DWC Ceramic Disc Twin Demand Softening Systems provide continuous soft water via a 3-way ball valve that keeps one valve in standby until the other reaches capacity and needs to regenerate. All systems are designed with high flow rates that are ideal for light commercial applications, but can also be used for residential configurations.
Twin System Specifications
| Model | Capacity Grains | Resin Cu. Ft. | Tank DxH (in.) | Brine Tank DxH (in.) | Backwash GPM |
|---|---|---|---|---|---|
| DT2CD | 32,000 | 1 | 9″ x 48″ | 18″ x 33″ | 2 |
| DT3CD | 48,000 | 1.5 | 10″ x 54″ | 18″ x 33″ | 2.9 |
| DT4CD | 64,000 | 2 | 12″ x 52″ | 18″ x 40″ | 4.2 |
| DT5CD | 80,000 | 2.5 | 13″ x 54″ | 18″ x 40″ | 4.8 |
| DT6CD | 96,000 | 3 | 14″ x 65″ | 18″ x 40″ | 4.9 |
For more information or to request a quote, contact us today!
